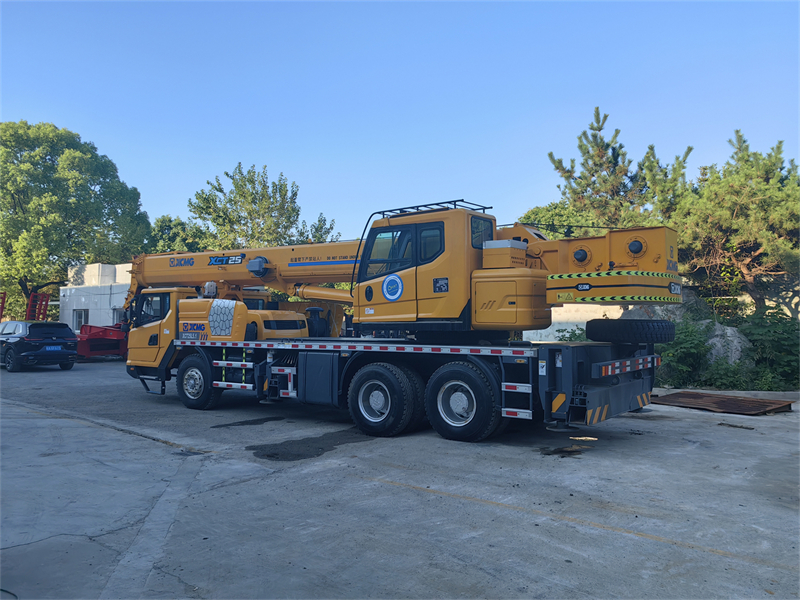

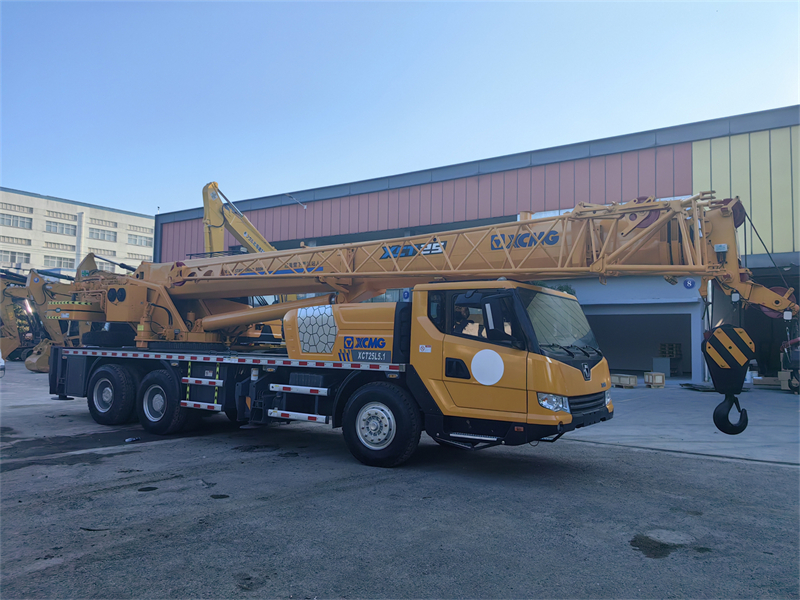

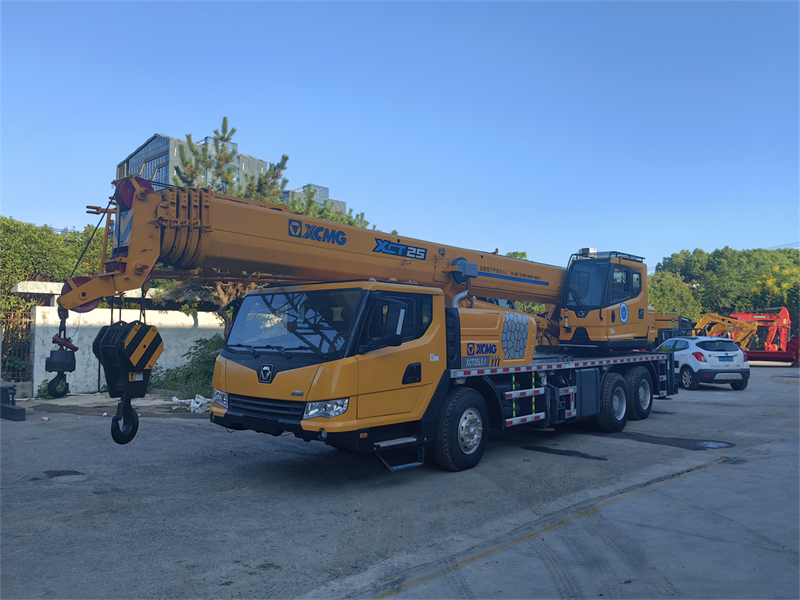

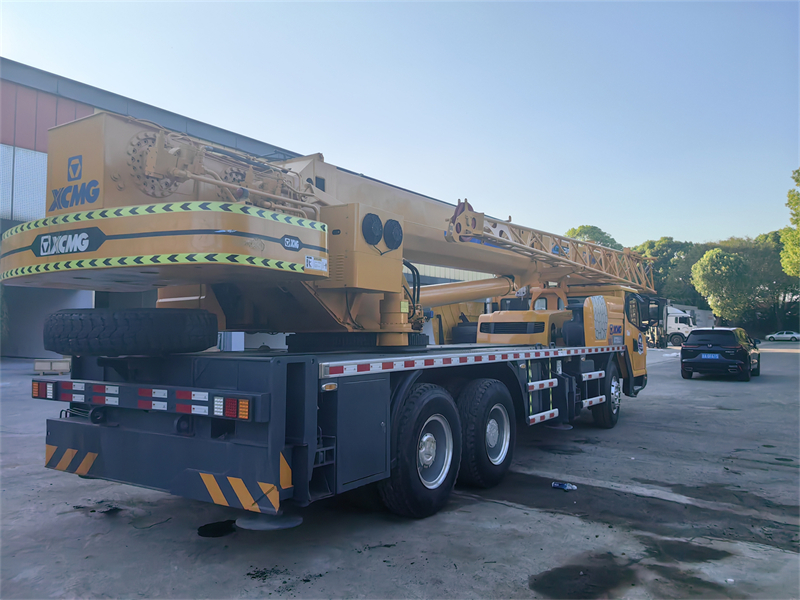

Make:XCMG

Model:XCT25L5

Lifting ability

Max. rated lifting weight:25ton

Max. rated lifting moment:1148KN.m

Max. lifting height-basic arm:11.2m

Max. lifting height-full extension arm:42.8m

Max. lifting height-basic arm+side arm:51.1m

Lift arm size

Lift arm length- -the base arm:10.8m

Lift arm length-Full extended arm:43m

Lift arm length-basic arm+side arm:52m

Operation speed parameter

Main curl of the max. lifting speed:135m/min

Secondary raise the max. lifting speed:135m/min

Full extension time of the arm:100s

Hom shift time:35s

swiveling speed:2.5rpm

Engine

Engine model:SC9DF320Q5

Rated power:235kw/190rpm

Driving parameters

Max. Gradability:45%

Max. driving speed:90km/h

Mini.turning radius:10.5m

Mini. ground clearance:260mm

Approaching angle / departure angle:12/14°

Dimensions

Transportation (L*W*H):13000*2550*3500mm
